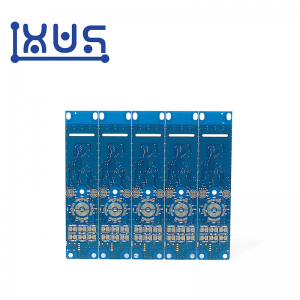

XWS Electronics 2 Layer Charger PCB China Printed Circuit Board Prototype

XWS Electronics 2 Layer Charger PCB China Printed Circuit Board Prototype Featured Image
  • XWS Electronics 2 Layer Charger PCB China Printed Circuit Board Prototype
  • XWS Electronics 2 Layer Charger PCB China Printed Circuit Board Prototype

Short Description:

Part Number：XWS-132 Layer: 2 Layer Material: FR4 Min. Hole Size: 0.3mm Min. Line Width: 0.15mm Min. Line Spacing: 0.15mm Thickness: 1.6 MM Cooper: 1OZ Surface: ENIG


Download as PDF

Product Detail

Product Tags

B5 A5

Part Number：XWS-132
Layer: 2 Layer
Material: FR4
Min. Hole Size: 0.3mm
Min. Line Width: 0.15mm
Min. Line Spacing: 0.15mm
Thickness: 1.6 MM
Cooper: 1OZ
Surface: ENIG
